AC to DC 180V-260VAC 50Hz 4-Stage Battery Charging Protection
Detail produk:
| Tempat asal: | Cina |
| Nama merek: | oxiang |
| Sertifikasi: | ce fcc |
| Nomor model: | AC2415PRO |
Syarat-syarat pembayaran & pengiriman:
| Kuantitas min Order: | Bisa dinegosiasikan |
|---|---|
| Harga: | negotiable |
| Kemasan rincian: | Kemasan |
| Waktu pengiriman: | 5 hari |
| Syarat-syarat pembayaran: | L/C, T/T, Western Union, MoneyGram |
| Menyediakan kemampuan: | 10.000 |
|
Informasi Detail |
|||
| Pengisian daya saat ini:: | 24V15A | Daya pengisian daya maks: | 440W |
|---|---|---|---|
| Tegangan Masukan: | AC180-260V/50HZ | Isi daya baterai: | GEL, Sealed, AGM, LiFePO4, Lithium-ion (NCM), 8 jenis baterai adalah opsional, pengisian baterai lit |
| Mode arus rendah: | 15A, mode malam: 6.5A | Pilih Aksesori: | Monitor(MT-2) |
| Dongle Bluetooth (BT10): | Sensor Suhu (TRS) | ||
| Menyoroti: | 4-stage DC battery charger,AC to DC battery charger 180V-260VAC,50Hz battery charger with protection |
||
Deskripsi Produk

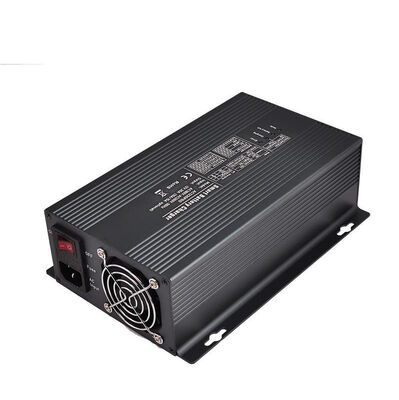

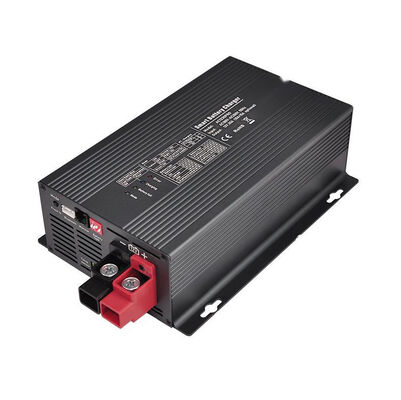

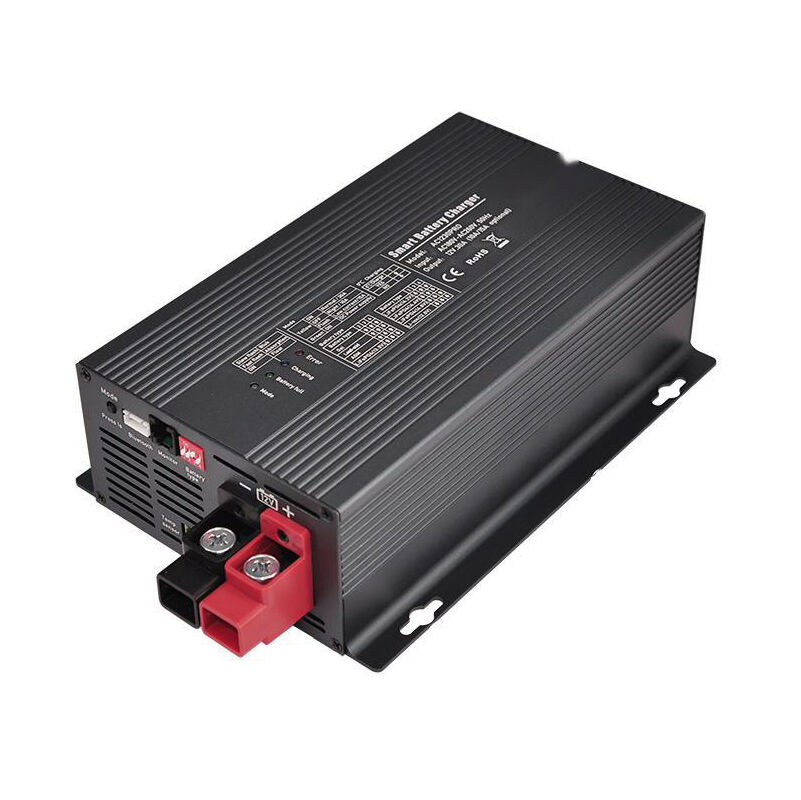

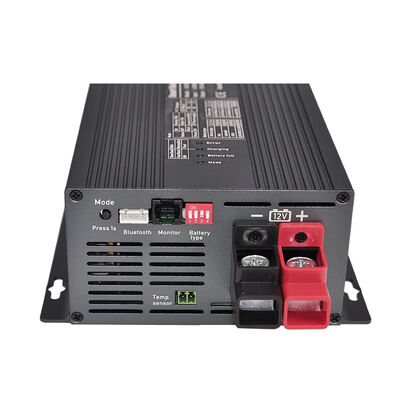

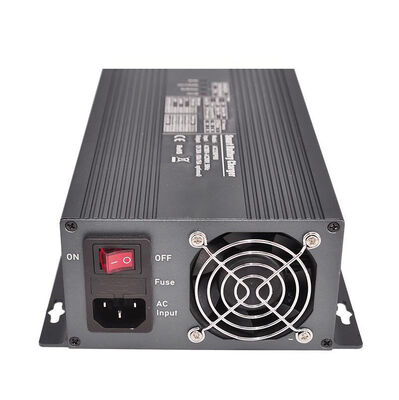

24V AC-DC Battery charger
1.Charging current: 24V,15A
2.Max.charging power:440W
3.Input voltage: AC180-260V/50HZ
4.Charge Battery type:GEL,Sealed,AGM,LiFePO4,Lithium-ion(NCM),8 battery types are optional, lithium battery 0 ℃ charging is optional
5.Low current mode: 7.5A, night mode: 4.5A
Choose Accessories: Monitor(MT-2); Bluetooth Dongle(BT10); Temperature Sensor(TRS)
| Model | AC1230 P ro | AC2415 P ro | AC4810 P ro |
| I nput voltage and frequency range |
180V-260VAC|50HZ | ||
| Efficiency | >90% | ||
| Battery voltage | 12V | 24V | 48V |
| Max .output current- Normal mode |
30A | 15A | 10A |
| Max .output current- low current mode |
15A | 7.5A | 5A |
| Max .output current- Night mode(quiet mode) |
10A | 6A | 3A |
| Max battery capacity ( recommended) |
300AH | 150AH | 100AH |
| M in battery capacity ( recommended) |
100AH | 50AH | 30AH |
| DC Power supply voltage/ current ( Default) |
12 .6V/30A | 25 .2V/ 15A | 50 .4V/ 10A |
| DC Power supply voltage/ current ( APP setting range) |
12V- 13 .8V | 24V-27 .6V | 48V-55 .2V |
| Temperature compensation ( Except lithium battery) |
18mV/℃ | 36mV/℃ | 72mV/℃ |
| C harge algorithm | 4 - stage adaptive | ||
| P rotection | Reverse polarity (fuse) , output short circuit , over temperature |
||
| O perating temperature | -20 to +50°C | ||
| Material & Colour | A luminium , I ron grey | ||
| Battery connection | M8 screw | ||
| P rotection category | IP22 (indoor use) | ||
| Weight | 1.4kg | ||
| D imensions (h x w x d) | 221× 155×70mm | ||
